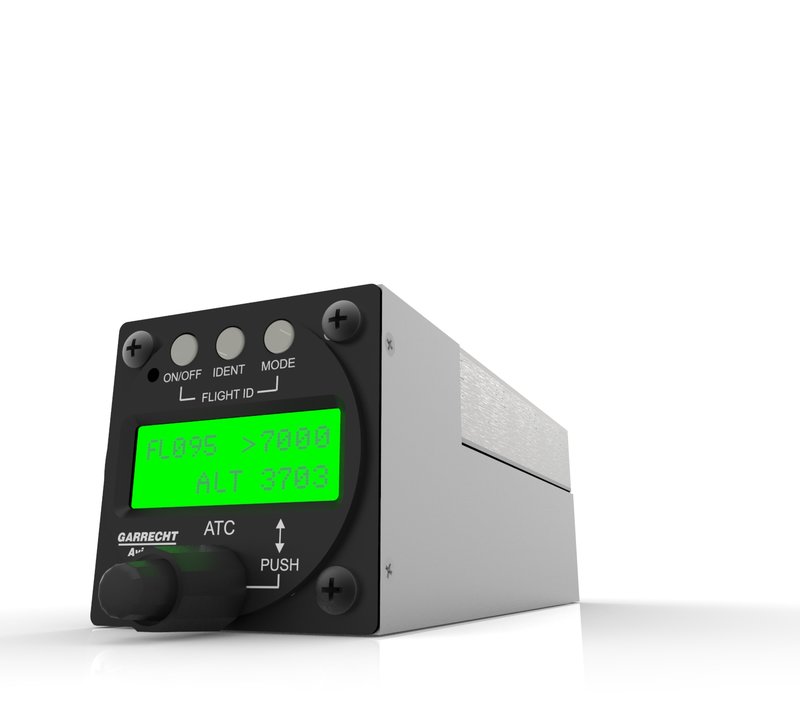

VT-01 UltraCompact - The proven, compact Mode-S Transponder

The VT-01 series of transponders are modern Mode-S / ADS-B transponders for panel installation in the form factor of a standard 57mm (2,25") instrument.

All advantages of VT-01
  • Very compact
  • Best solution for club fleets
  • integral alticoder (100ft or 25 ft resolution)
  • Installation in small panels with less space
  • Output power: min. 220 Watt (Class-1), or min. 150 Watt (Class-2)
  • Level 2es (extended Squitter)
  • Direct-GPS NMEA Interface for ADS-B out, no Interface required
  • Ultra low power current, no external cooling required
  • CAN-Bus Interface for future applications (i.e. TIS)
  • COMM-A/B Interface via CAN-Bus



Technical Details:

  • Mode-S transponder
  • Available in 2 versions:
    • class 1: 250 W, up to 35000 ft, ≤ 250 kt
    • class 2: 150 W, up to 15000 ft, ≤ 175 kt
  • ETSO certified
  • Integrated altitude encoder
  • Ultra compact: 60 mm (W) x 60 mm (H)
  • Mounts into 2-1/4" instrument hole

art_142_317 gsobild_141

Presented prices are net values (please add 23% VAT). Gross prices are presented in brackets.
Prices do not include shipping costs.
